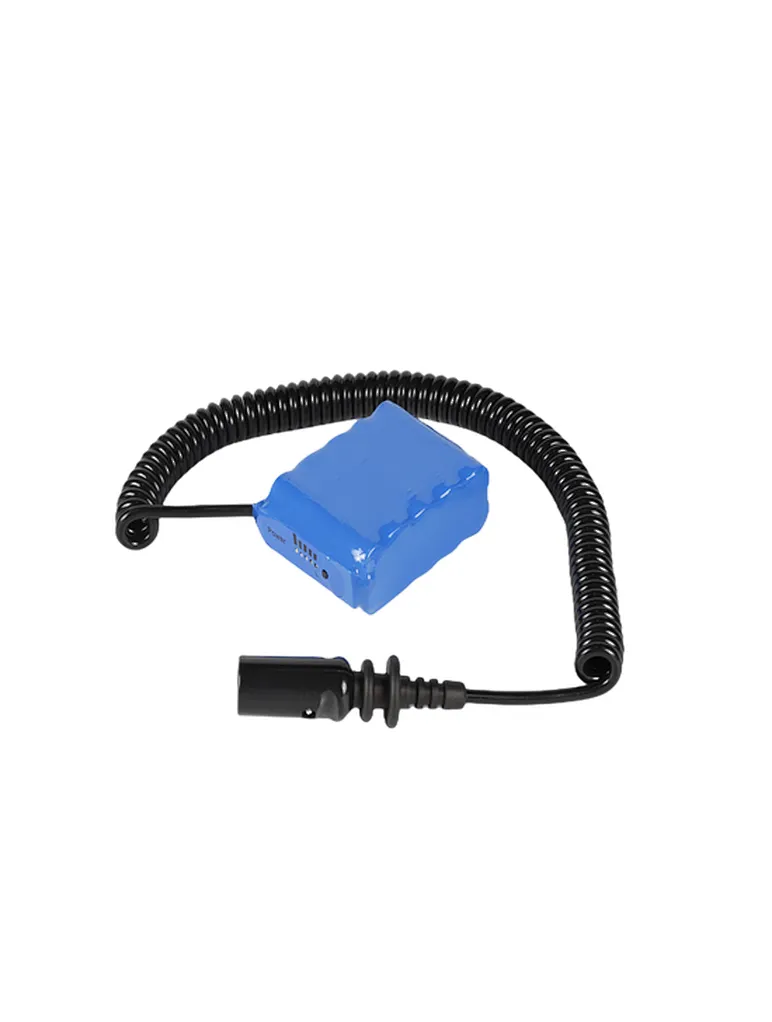

18V 4000mAh 18650 Solar Street Lamp Lithium Battery
HG10AE2003
18V 4000mAh 18650 Solar Street Lamp Lithium Battery
Model: HG10AE2003
Voltage: 18V
Capacity: 4000mAh
Structure: 5S2P
Application field: Solar power, Standby power
Model: HG10AE2003
Voltage: 18V
Capacity: 4000mAh
Structure: 5S2P
Application field: Solar power, Standby power
Quantity
Lithium Battery Specification
| Description: | 18V 4000mAh 18650 Solar Street Lamp Lithium Battery |
| Product No.: | HG10AE2003 |
| Cell model: | 18650 / 2000mAh / 3.6V |
| Battery Specification: | 5S2P / 4000mAh / 18V |
| Nominal voltage: | 18V |
| Nominal capacity: | 4000mAh |
| Charging voltage: | 21V |
| Charging current: | 2000mA |
| Discharge current: | 2000mA |
| Maximum discharge current: | 4000mA |
| Discharge cut-off voltage: | 13.75V |
| Internal resistance : | ≤ 300m Ω |
| Delivery voltage: | 18-20v |
| Battery weight: | 550g |
| Product size: | 95 * 70 * 38mm (max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1 month - 20-60 ° C; 3 months - 20-45 ° C; 12 months - 20-25 ° C |
| Relative humidity: | 65 ± 20% |
| Battery structure: | |
| Lithium Battery protection: | short circuit protection, overcharge protection, over discharge protection, over current protection, etc |
| Application field: | solar power, standby power, Solar Street Lamp powered by Lithium Battery |
