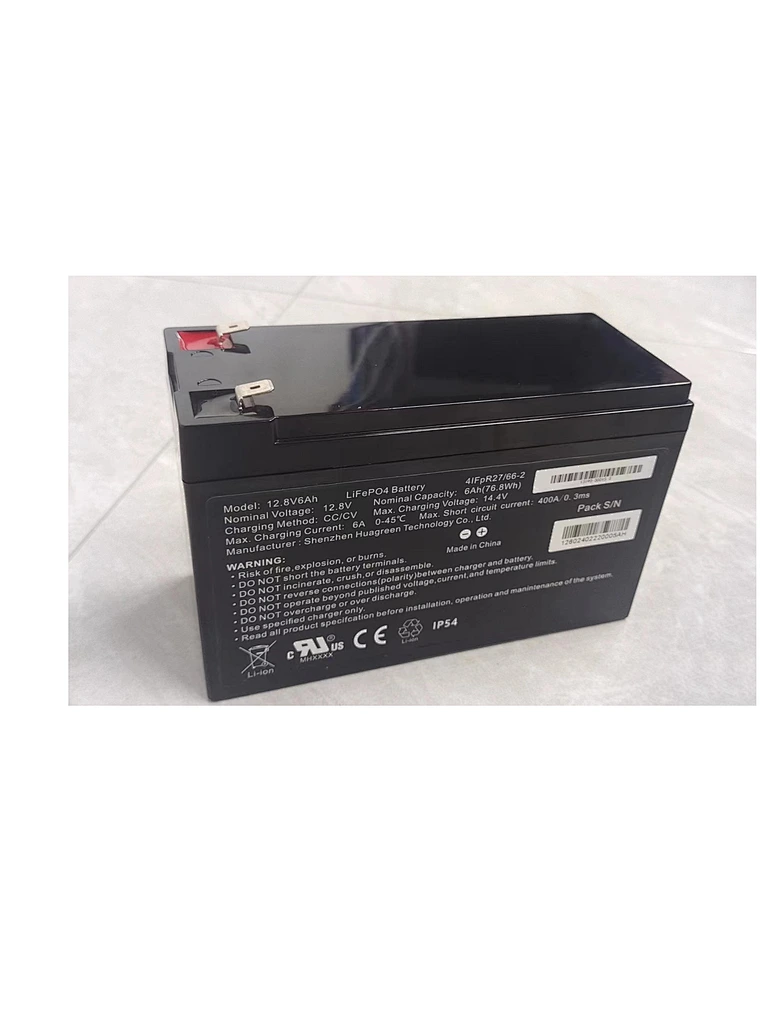

12.8V 6Ah Li-ion UPS battery pack
HG8AE4930
12.8V 6Ah Li-ion UPS battery pack
Model: HG8AE4930
Voltage: 12.8V
Capacity: 6Ah
Structure: 4S2P
Application field: UPS,Energy Storage Equipment
Certification: UL1973，IEC62619, UN38.3
Model: HG8AE4930
Voltage: 12.8V
Capacity: 6Ah
Structure: 4S2P
Application field: UPS,Energy Storage Equipment
Certification: UL1973，IEC62619, UN38.3
Quantity
| Description: | 12.8V 6Ah Li-ion UPS battery pack |
| Product No.: | HG8AE4830 |
| Cell model: | LiFePO4 3000mAh/3.2V |
| Battery Specification: | 4S2P/6Ah/12.8V |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 6Ah |
| Charging voltage: | 14.4V |
| Charging current: | 5.7A |
| Discharge current: | 5.7A |
| Maximum discharge current: | 70A |
| Discharge cut-off voltage: | 8V |
| Internal resistance : | ≤40mΩ |
| Delivery voltage: | 12.8-14V |
| Battery weight: | 1kg |
| Product size: | 152*66*99mm(max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1 month -5-45°C; 3 months -5-35°C; 12 months -5-30°C. |
| Relative humidity: | 65 ± 20% |
| Battery structure: | plastic shell |
| Lithium Battery protection: | short circuit protection, overcharge protection, over discharge protection, over current protection, Power management，etc. |
| Application field: | UPS,Energy Storage Equipment |
